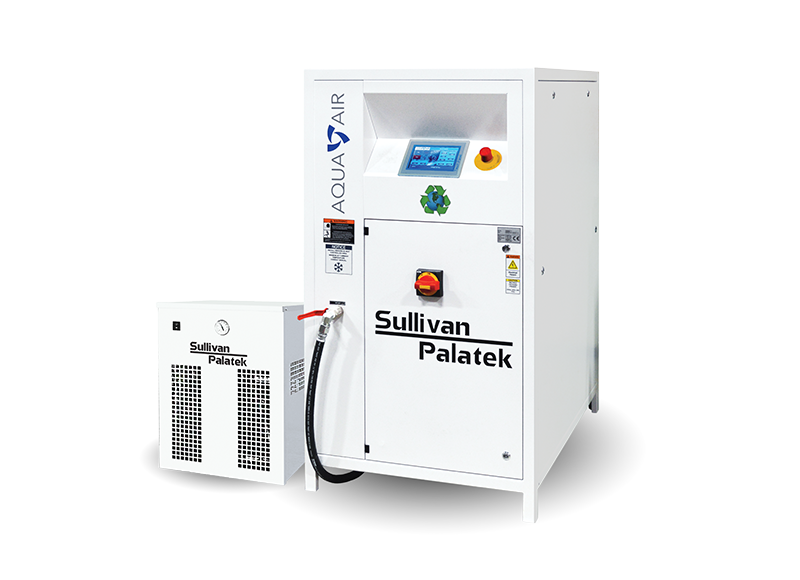

AA SERIES

Industrial Electric

5-15 HP

The Environmental Solution

  • Cool Clean Air
  • Self-Contained System
  • No Make-Up Water Required

Thanks to the innovative Aqua Air technology, oil-free production of compressed air is now safe and sustainable. This self-contained compressor generates the necessary coolant directly and exclusively from ambient air, using the most natural and environmentally-friendly fluid available: pure water!

This unique system comes complete with our refrigerated air dryer and zero-loss drain.

Features & Benefits

Wear-Free Floating Bearings

Maintenance and wear-free floating bearing design created with the highest grade tolerances are the foundation for long life, reliable screw compressor air end

Separator System

Durable and reliable, the separation and return of condensate into the circulation system takes place without any mechanical components

Water Filter System

The integrated injection manifold and water filter manifold are bolted to each other. By using O-rings, the seal between the essential components is leak free. The water filter has separate filter elements for operation and bearing injection

Air End Design

The screw compressor air end is innovative in its design. The rotor profiles are a unique composition of a self-healing proprietary polymer material enhancing efficiency and long-term performance

Inlet Air System

A performance-engineered inlet air control valve and a three-stage, heavy-duty inlet filter with remote inlet connection are standard supply. This design improves air control and system performance with a minimal pressure drop

Model Horsepower (hp) Capacity (cfm) Pressure (psi) Motor Speed (rpm)
SPAA-5 5.4 19 116 2950
SPAA-H5 5.4 17 145 2950
SPAA-7.5 7.4 29 116 2950
SPAA-H7.5 7.4 25 145 2950
SPAA-10 10 40 116 2950
SPAA-H10 10 36 145 2950
SPAA-15 14.8 90 116 2950
SPAA-H15 14.8 49 145 2950

Oil-Free Industries

  • Automotive
  • Aviation
  • Beverages
  • Breweries
  • Chemicals
  • Construction
  • Electronics Manufacturing
  • Food Processing
  • Health Care
  • Laboratories
  • Metering Technology
  • Oil & Gas
  • Packaging
  • Pharmaceuticals
  • Power Generation
  • Pulp & Paper
  • Textiles
  • Pressure above 150 PSI (10 Bar)
  • Variable Frequency Drive (VFD)
