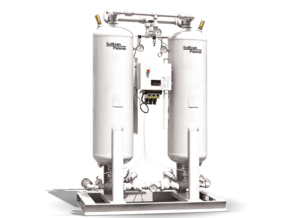

SPBS SERIES

Externally Heated Blower Purge Regenerative Air Dryer

115-3530 CFM

Compressed air enters the dryer and is directed to a tower by the inlet valves. It then proceeds up through the tower, gives up its moisture, then exits through the outlet check valve. A regenerative blower creates a purge stream that is heated by a circulation heater increasing it’s moisture holding capacity while transferring heat to the desiccant bed.

The moisture is picked up by the heated purge air, and exits to the atmosphere through the purge exhaust valve and muffler. The drying and regenerating cycles occur simultaneously for 4 hours. The regeneration cycle begins with 2.5 hours of heating and 1.4 hours of cooling, then the tower repressurizes before the inlet valves invert and the process starts again.

Blower Purge dryers use wet ambient air for regeneration that can cause dewpoint to fluctuate with seasonal ambient conditions. The standard Tri-Mode operating feature allows the SPBS dryer to overcome seasonal dewpoint spikes.

Features & Benefits

  • NEMA 12 Electrical
  • OSHA Approved Mufflers
  • Illuminated On/Off Power Switch
  • ASME/CRN Vessels
  • ASME Relief Valves
  • Control Air Filter
  • Adjustable Purge Flow w/ Indicator
  • Tower Pressure Gauges
  • Independent Desiccant Fill & Drain Ports
  • 15 Watt /In² Incoloy Sheath Heater
  • Insulated heater & purge piping
  • Heater over-temp hi-limit system
  • Silencing Blower Intake Filter
  • Regenerative Blower w/Thermal Overload

*Voltage 116 (120-1-60)   |   *Voltage 216 (230-1-60)   |   *Voltage 436  (460-3-60)

Model Voltage CFM @ 120 PSI Max Pressure Shipping Weight (lbs)
SPBS-115-* 120/240-1-60 115 150 PSIG 855
SPBS-145-* 120/240-1-60 145 150 PSIG 905
SPBS-200-* 120/240-1-60 200 150 PSIG 1100
SPBS-295-* 120/240-1-60 295 150 PSIG 1425
SPBS-415-* 120/240-1-60 415 150 PSIG 1530
SPBS-585-* 120/240-1-60 585 150 PSIG 1840
SPBS-765-* 120/240-1-60 765 150 PSIG 2065
SPBS-940-* 120/240-1-60 940 150 PSIG 2400
SPBS-1175-* 120/240-1-60 1175 150 PSIG 3175
SPBS-1470-* 120/240-1-60 1470 150 PSIG 4080
SPBS-1650-* 120/240-1-60 1650 150 PSIG 4500
SPBS-1880-* 120/240-1-60 1880 150 PSIG 5145
SPBS-2115-* 120/240-1-60 2115 150 PSIG 5810
SPBS-2350-* 120/240-1-60 2350 150 PSIG 6470
SPBS-2650-* 120/240-1-60 2650 150 PSIG 7250
SPBS-2940-* 120/240-1-60 2940 150 PSIG 8100
SPBS-3235-* 120/240-1-60 3235 150 PSIG 8825
SPBS-3530-* 120/240-1-60 3530 150 PSIG 9340
  • Painting
  • Pneumatic tools
  • Textile manufacturing
  • Pneumatic control systems
  • Dental office air
  • Truck and train air brake systems
