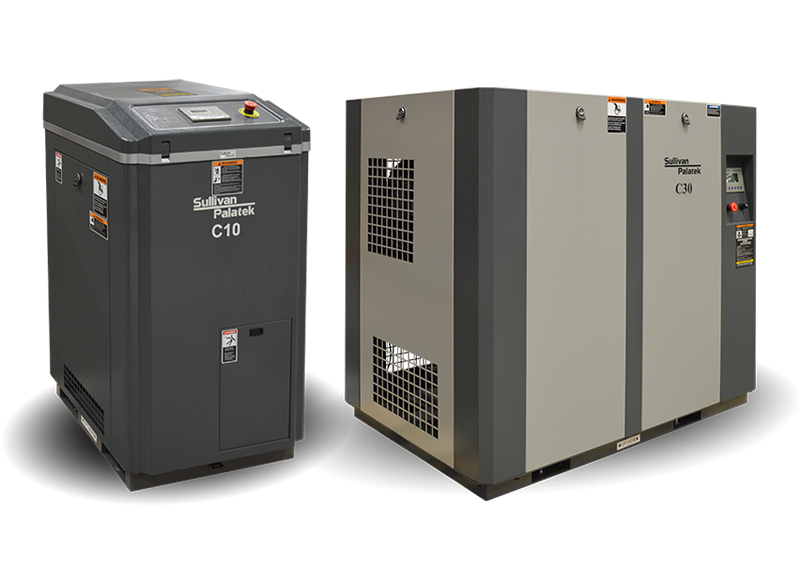

C SERIES

Industrial Electric

5-30 HP

Compact and energy-efficient, the C-Series electric rotary screw air compressors are low noise units ideal for auto body shops and small facilities. The simple internal structure makes maintenance easy.

Standard models are offered in 5-30 hp, and integrated dryer packages are available from 10-30 hp.

Features & Benefits

  • Energy efficient
  • Quiet – 68dba
  • TEFC motor
  • 208/230/460/3/60 voltage
  • Microprocessor controlled
  • Multipoint measuring and protection of pressure and temperature
  • RS-485 communication interface function
  • Seven function maintenance schedule/monitoring
  • Full function electrical control for motor protection: motor overload relay, phase protection
  • Single phase 5-10 hp, tri-voltage 10-30 hp
Model Horsepower (hp) Capacity (cfm) Pressure (psi) Motor Speed (rpm)
C-5 5 22 125 3510
C-7.5 7.5 25 125 3510
C-10 10 35 125 3510
C-10 ID 10 35 125 N/A
C-15 15 53 125 3500
C-15 ID 15 53 125 3500
C-20 20 81 125 3540
C-20 ID 20 81 125 3540
C-25 25 102 125 3555
C-25 ID 25 102 125 3555
C-30 30 123 125 3555
 C-30 ID 30 123 125 3555
  • Body Shops
  • Small Facilities
  • Tank mounted:
    • ASME coded 80, 120, and 200 gallon with auto drain
  • Electric Auto Drain
