CHIPPING HAMMERS

Construction Tools

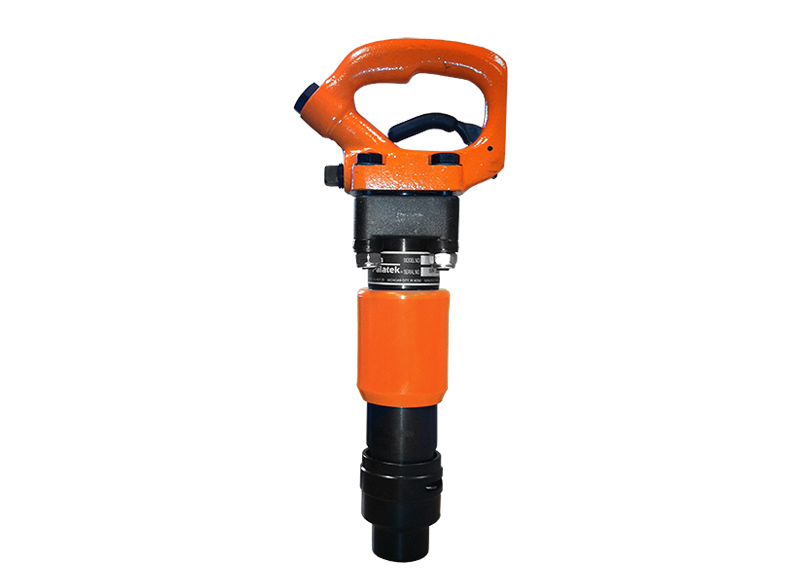

The full line of 15 pound class Chippers can come with open handles and thumb triggers, heavy-duty “D” style 4-bolt handles with Internal Triggers or Thumb Triggers. The open handle is forged and is machined from high alloy steel with a high shock, tool steel piston. The 4-bolt chipper is machined from high alloy steel, piston is high shock tool steel and a cast “D” handle with an internal trigger or external Thumb Trigger. The 4 bolt Chippers are now available with a screw-on fine thread, Universal Ball Retainer (no retainer springs needed). All are available with either .680 Round or .580 Hex chucks.

Features & Benefits

  • Machined from premium alloy steel
  • Cast D handle with inside rubberized trigger
  • High shock tool steel piston
  • Rotatable exhaust deflector
  • Inlet 3/8” with bushing, 7/8” with out bushing
  • Available with .680 Round Chuck Model SCH 2,3, or 4, R
  • Available with .580 Hex Chuck SCH 2,3,or 4, H
  • Standard with oval collar retainer
Model Capacity (cfm) Length (in) Weight (lbs) Blows per Minute (bpm)
SCH-2 29.75 14 13 2300
SCHO-2 29.75 14 13 2300
SCH-3 31.5 15.25 14 2200
SCHO-3 31.5 15.25 14 2200
SCH-4 33.23 17 15 1800
SCHO-4 33.23 17 15 1800
  • Renovation, scaling, demolition and construction jobs
  • Optional Universal BALL retainer available
  • Optional whip hose with oiler available
