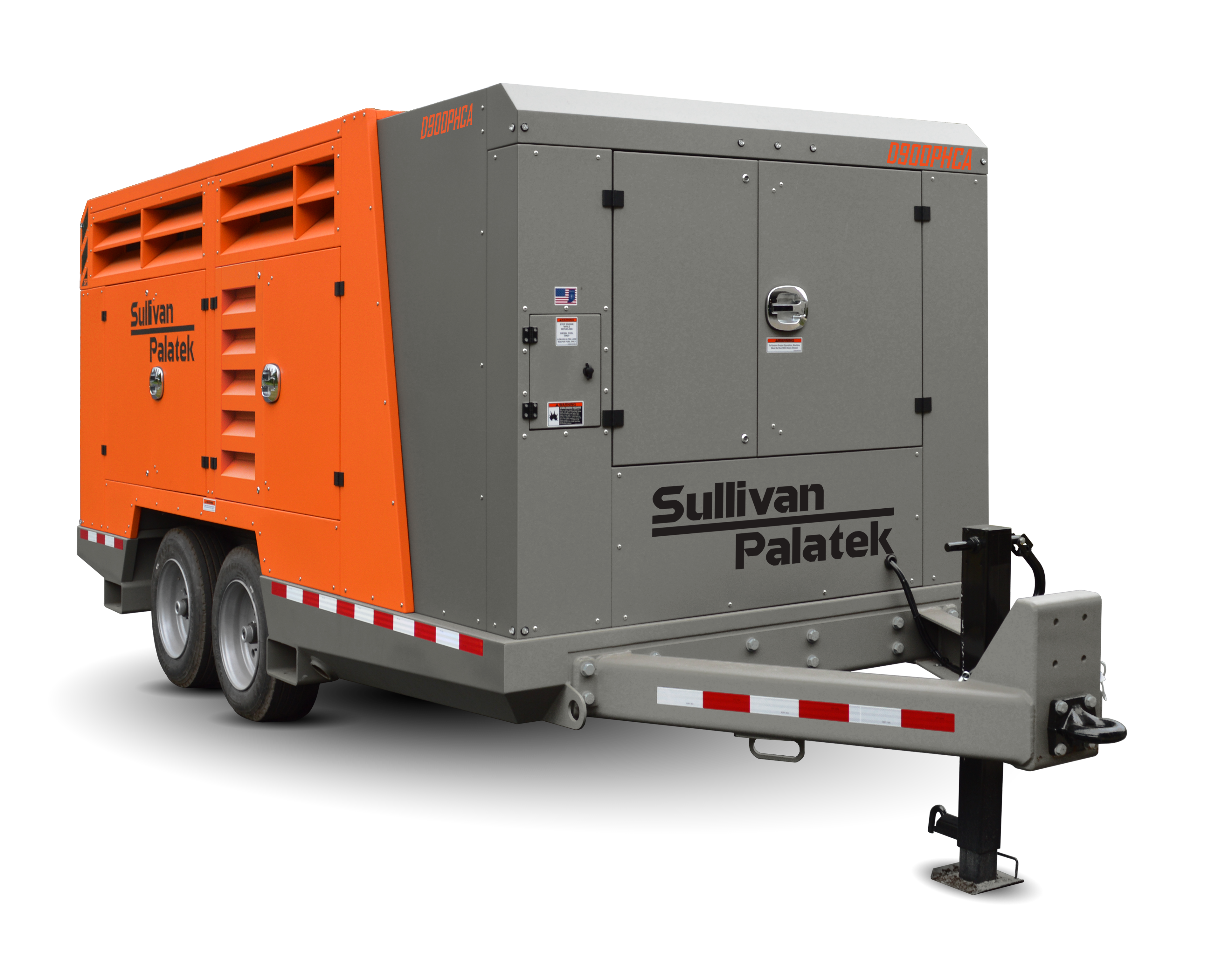

D750-900PHCA4

Portable Compressor

750, 825, & 900CFM

Engineered to provide reliable air power in the most demanding environments, the D750-900PHCA compressor series delivers dual operating pressures of 100 and 150 psi at a capacity of 750, 825 or 900 CFM. At its core is a large 204 mm Sullivan-Palatek air end, powered by a 350 hp Caterpillar engine. Equipped with the Sullivan-Palatek Electronic Control (SPEC) system, these units are the ideal unit for various applications including construction site demolition and sandblasting. With its aftercool and filter options this unit is also able to be used as a safe, reliable method for factories to meet their compressed air needs.

Features & Benefits

  • 350 hp Caterpillar Tier 4 Final Engine
  • 204 mm air end manufactured by Sullivan-Palatek has a three-year warranty
  • Large service doors allow for simple maintenance access
  • Noise level limited to 76 dBA
  • Large steel fuel tank with a 163-gallon capacity
  • Equipped with a dual axle running gear and electric brakes
  • Durable galvanneal sheet metal enclosure with a powder coated finish for rust and corrosion resistance
  • Telemetry
  • Solar Battery Charger
Model Horsepower (hp) Capacity (cfm) Pressure (psi) Engine Make
D750PHCA4 350 750 100/150 Caterpillar C9.3 Tier 4 Final
D825PHCA4 350 825 100/150 Caterpillar C9.3 Tier 4 Final
D900PHCA4 350 900 100/150 Caterpillar C9.3 Tier 4 Final
  • Construction site demolition
  • Sandblasting
  • Aftercooler & Filter for Instrument Quality Air
  • Auto-Start to bring machine on line should the need arise
  • Oil Maintenance, Extended Capacity System
  • Remote Fuel capability, with Quick Connect / Disconnect couplers
  • Cold Weather Package, includes Engine Block Heater, etc..
  • Variable Pitch Fan for efficient operation
  • Check Valve
  • Telemetry
  • Solar Battery Charger
  • Optional Color, Powdercoat Paint (Upper Enclosure, only)
