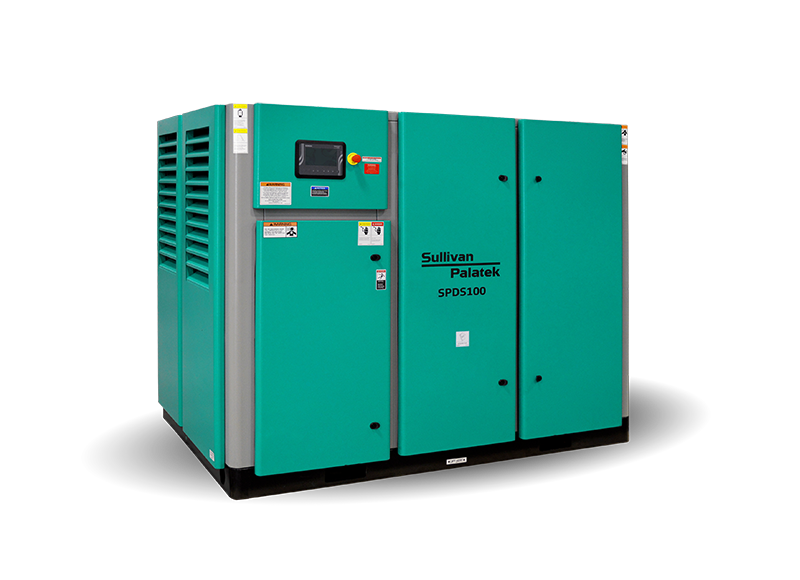

SPDS Series

Oil Free Compressor

75-350 HP

Our Dry Screw oil free industrial air compressors provide containment-free air for the chemical, pharmaceutical, and food and beverage industries.

These compressors are packaged for ease of installation and operation and offered in 75-350 hp packages, 50 or 60 Hz complete with PLC and touchscreen controls.

Features & Benefits

  • Easy maintenance access through large double hinged doors
  • Sound attenuation enclosure for quiet operation as standard supply
  • Two Stage Air End design with synchronous gearbox and
  • Rotors have patented super coating for long life
  • PLC touch screen controller with built-in safety shutdowns
  • Optional Variable Speed Drive (VSD) control technology available
  • Wye-Delta starter and Hi-Efficiency TEFC motors as standard supply
  • Air Cooled packages as standard available up to 150 hp
  • Water Cooled Packages from 75-350 hp
  • Double Seal labyrinth design ensures supply of true oil-free air
  • Engineered as a package for ease of installation and operation
Model Horsepower (hp) Capacity (cfm) Pressure (psi)
SPDS75-100 75 295 100
SPDS75-116 75 295 116
SPDS75-145 75 267 145
SPDS100-100 100 420 100
SPDS100-116 100 419 116
SPDS100-145 100 346 145
SPDS125-100 125 515 100
SPDS125-116 125 514 116
SPDS125-145 125 417 145
SPDS150-100 150 683 100
SPDS150-116 150 650 116
SPDS150-145 150 578 145
SPDS200-100 200 820 100
SPDS200-116 200 819 116
SPDS200-145 200 771 145
SPDS250-100 250 1045 100
SPDS250-116 250 1044 116
SPDS250-145 250 946 145
SPDS300-100 300 1378 100
SPDS300-116 300 1376 116
SPDS300-145 300 1153 145
SPDS350-100 350 1741 100
SPDS350-116 350 1572 116
SPDS350-145 350 1469 145
  • Food and Beverage
  • Electronics
  • Pharmaceutical
  • Chemical
  • Textiles
  • Power Plants
