Export Compressors

185-1600 CFM

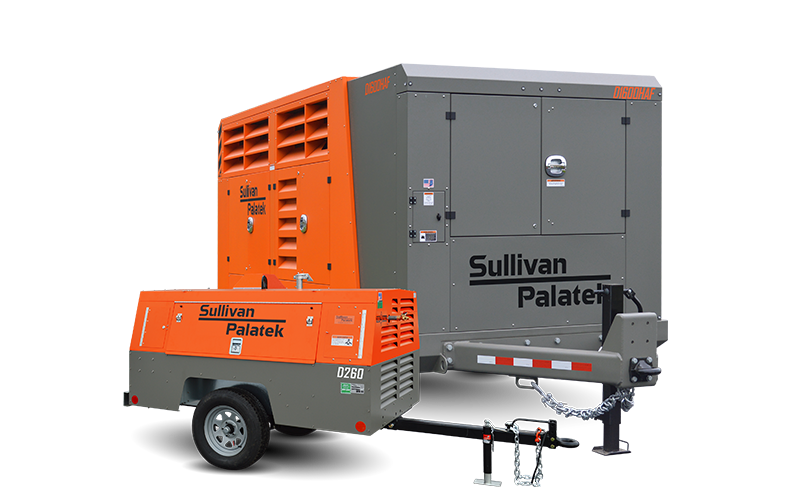

As the mining industry’s landscape continues to grow and change, so does its needs for more rugged and reliable machinery. Machines capable of putting in the hours, taking the punishing heat, and surviving the dirt and grime everyday jobs throw at them. We’ve been building these machines for nearly 3 decades. Having crafted some of the most dependable equipment on the market. Industries around the world have grown to trust that Sullivan-Palatek can meet their needs. In order to meet the demands presented to us, our machines are now bigger, more powerful and dawning a new look. Our newly redesigned portable compressors are turning heads on a global scale.

Model Engine Make Capacity (cfm) Pressure (psi)
DE185P3IZ-C Isuzu 185 100
DE210PHJD John Deere 210 150
DE260PJD John Deere 260 100
DE375PDCA Caterpillar 375 100/150
DE750PH3CA Caterpillar 750 100/150
DR750-10TCA Caterpillar 750 150
DE750PH3CU Cummins 750 100/150
DE825PH3CA Caterpillar 825 100/150
DE725PH3CU Cummins 825 100/150
DE900PH3CA Caterpillar 900 100/150
DR900-10TCA Caterpillar 900 150
DE900PPH3CU Cummins 900 100/150
DE1600PHCA3 Caterpillar 1600 150
DE1600PHCU3 Cummins 1600 150
DE1150PXHDCA3 Caterpillar 1150 and 900 350 and 500
DE1150PXHDCU3 Cummins 1150 and 900 350 and 500

For Compressors – 185, 210, 260, and 375

  • Available Optional Hitches, includes Lunette eye, Ball Hitch, and Bulldog Hitch
  • A-Frame Drawbar, and Extended Drawbar
  • Hose Reels, both Single and Dual (100’ of ¾” Hose capacity, each)
  • Jack with Pneumatic Third Wheel
  • Electric or Hydraulic Brakes
  • 6-Pin, 7-Pin, or 7-Pin RV Connection to Trailer Light Harness
  • Cold Weather Package, includes Engine Block Heater, etc..
  • LED Tail Lights Option (Stop / Tail / Turn Signal)
  • Door Gas Springs, to aid raising door
  • OSHA Valve (Velocity Fuse)
  • Skid Mount available
  • Optional Color, Powdercoat Paint (Upper Enclosure, only)

For Compressors – 750, 825, 900, 1600, and 1150

  • Aftercooler & Filter for Instrument Quality Air
  • Auto-Start to bring machine on line should the need arise
  • Oil Maintenance, Extended Capacity System
  • Remote Fuel capability, with Quick Connect / Disconnect Couplers
  • Cold Weather Package, includes Engine Block Heater, etc..
  • Variable Pitch Fan for efficient operation
  • Check Valve
  • Telemetry (750 – 900 Cummins, STD on Remainder)
  • Solar Battery Charger (750 – 900 Cummins, STD on Remainder)
  • Optional Color, Powdercoat Paint (Upper Enclosure, only)
