Construction Tools

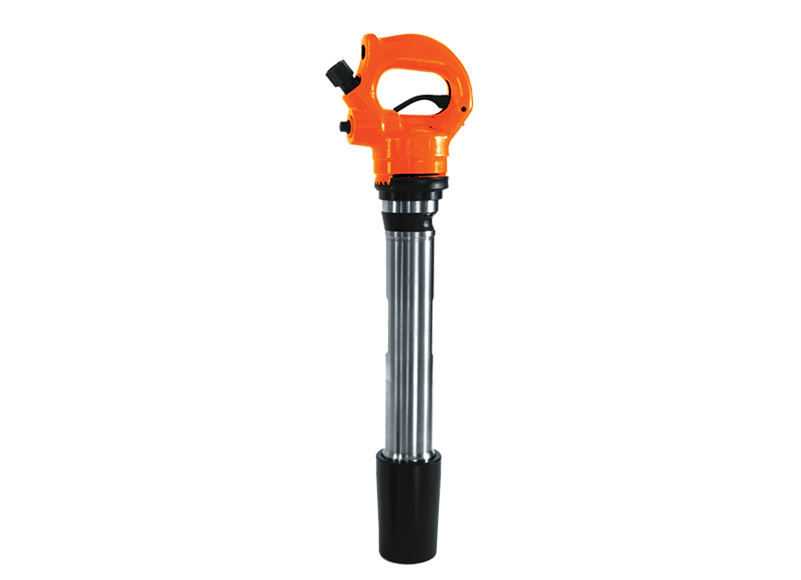

Are made with a durable premium alloy machined cylinder that is stepped internally. This safety “bridged” design prevents the piston from exiting the bottom end of tool. A Replaceable Auto Valve extends tool operation life without expensive valve repairs. Tools come standard with a screened inlet, urethane bumpers and hardened sleeves for extended wear life on the job and all utilize 11 X Jumbo steel.

Features & Benefits

  • Rotatable rubber exhaust muffler
  • Rotatable Steel Exhaust clip, Optional.
  • One piece machined premium alloy cylinder
  • Replaceable Auto Valve for extended life
  • Safe bridged or stepped internal cylinder (piston will not exit bottom of tool)
  • Utilizes 11X jumbo steels
  • Spring retainer
  • Standard upper and lower hardened sleeves
  • Urethane bumper for longer life
  • Screened 1/2″ npt inlet
  • Requires whip hose and oiler
Model Capacity (cfm) Weight (lbs) Blows per Minute (bpm)
SRB-6 40 23 1560
SRB-8 44 30 1140
SRB-11 50 33 850
  • Metal and concrete application
  • Demolition and bridge work
