Industrial Electric

40-60 HP

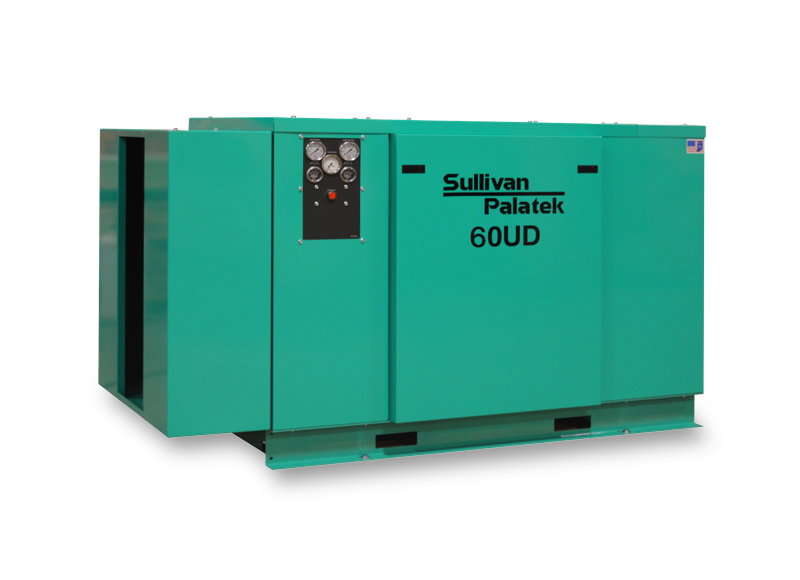

Reliable in any environment, the UD-Series industrial electric updraft model air compressor is another versatile product developed by Sullivan-Palatek. The UD-Series compressors are available in a range of 40-60 hp. The compressors updraft design allows for hot air to be recovered or exhausted through the top of the machine. Additionally, a dedicated fan motor, a side by side lube cooler, and an air-cooled aftercooler allow for easy cleaning. This compressors energy efficient design and small footprint make it an ideal product for medium-sized plastics manufacturing plants, woodworking shops, and dry-cleaning facilities.

Features & Benefits

  • The up-draft cooler design vents air away from the package.  This is a possible space-saving feature that allows heat recovery that could be used for various purposes: supplement space heating, heating of liquids, drying processes, etc..
  • Three-phase open drip motor options include 200/208/230/460/575 volts
  • Full voltage magnetic starter with 120-volt control power
  • The standard T1 microprocessor controller displays status, warnings, maintenance, and is capable of sequencing multiple compressors (gauges are optional)
  • One-piece inlet/check valve housing for dependable performance and complete modulation
  • Heavy duty dry type air intake filter with easily replaceable elements
Model Horsepower (hp) Capacity (cfm) Pressure (psi) Motor Speed (rpm)
UD-40 40 160 125 3600
UD-50 50 *184 125 3600
UD-60 60 261 125 3600
  • Medium Sized Plastics Manufacturing Plants
  • Woodworking Shops
  • Dry Cleaning Facilities
  • Water cooled
  • Acoustical enclosure: Acoustical enclosure: Easily removable panels for faster maintenance and accessibility while keeping it quiet
  • Lubricant: Lubricant: factory fill with Pallube 32, Pal-Extra 44, AFX 32, or Food Grade lubricant
  • With NEMA 4 TEFC options, our compressors can be operated in harsher environments
  • Wye-Delta and Solid States starters
  • Air filter pop up indicator
  • Deluxe gauge panel: Line pressure gauge, discharge pressure gauge, hour meter, temperature gauge, lube filter, and separator element differential gauges
  • HATD shutdown switch: Shuts the compressor if high discharge air temperatures are sensed
  • Cold weather/low ambient package
  • Separator trap: Captures and automatically drains condensed water, oil, and dirt
  • VFD: Variable Frequency Drive option, for more information, click here

*Capacity in accordance with CAGI / ISO 1217 (Annex C / Annex E)
