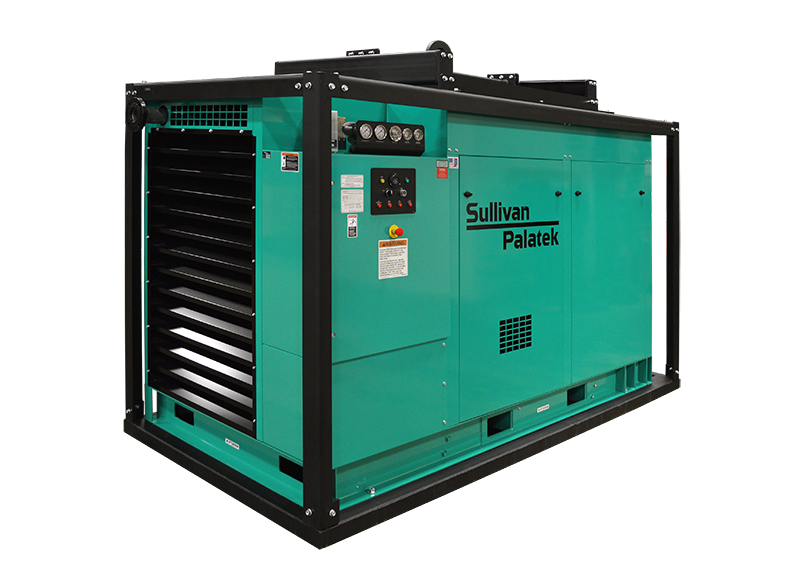

ECC SERIES

Electric Construction Compressors

50-450 HP

The ECC-Series is a robust compressed air solution that is ideal for outside locations. The units are offered in a range of 50-450 hp and are engineered with a centrally-located lift point and containment base.

Frequently used by utility companies, paper mills, power plants, and shipyards, the ECC-Series is a dependable, heavy-duty compressed air option.

Features & Benefits

  • 460/575/3/60, 400/3/50 volt energy efficient C-Face electric motor
  • Automatic stop/start or constant speed controls
  • Built-in Aftercoolers
  • Cam-Loc Cable Connectors
  • Easily removable acoustical enclosure panels that allow for ease of maintenance
  • Heavy duty two-stage air intake filter
  • Central located lifting bail on 50-250hp, four point lift for 300-450hp
  • Lube Filter
  • Motor Starter
  • Skid Mounting
  • Variety of gauge instrumentation controls
Model Horsepower (hp) Capacity (cfm) Pressure (psi)
50UD-ECC 50 178 150
SP16-100 ECC 100 410 150
SP20-200 ECC 200 810 150

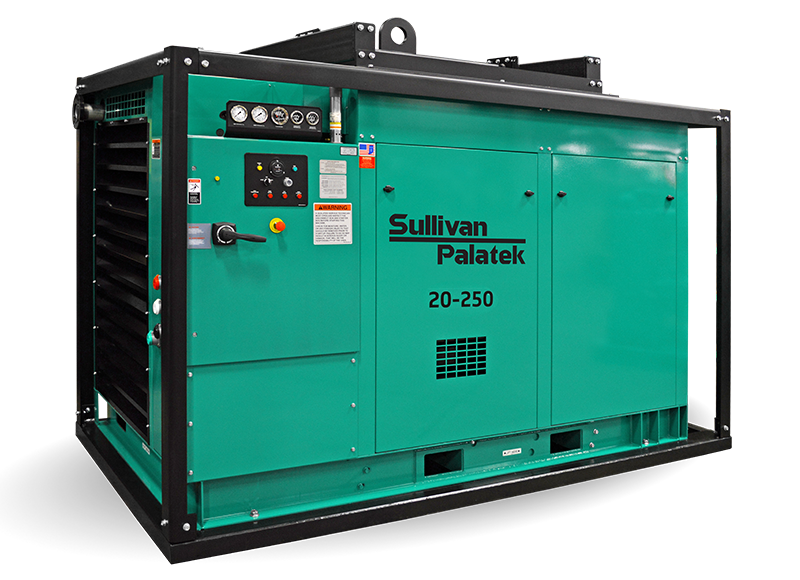

SP20-250 ECC 250 960 150
SP20-300 ECC 300 1100 150
SP32-400 ECC 400 1438 150
SP32-450 ECC 450 1570 150
  • Utility Companies
  • Paper Mills
  • Shipyards
  • Power Plants
