Industrial Electric

10 HP

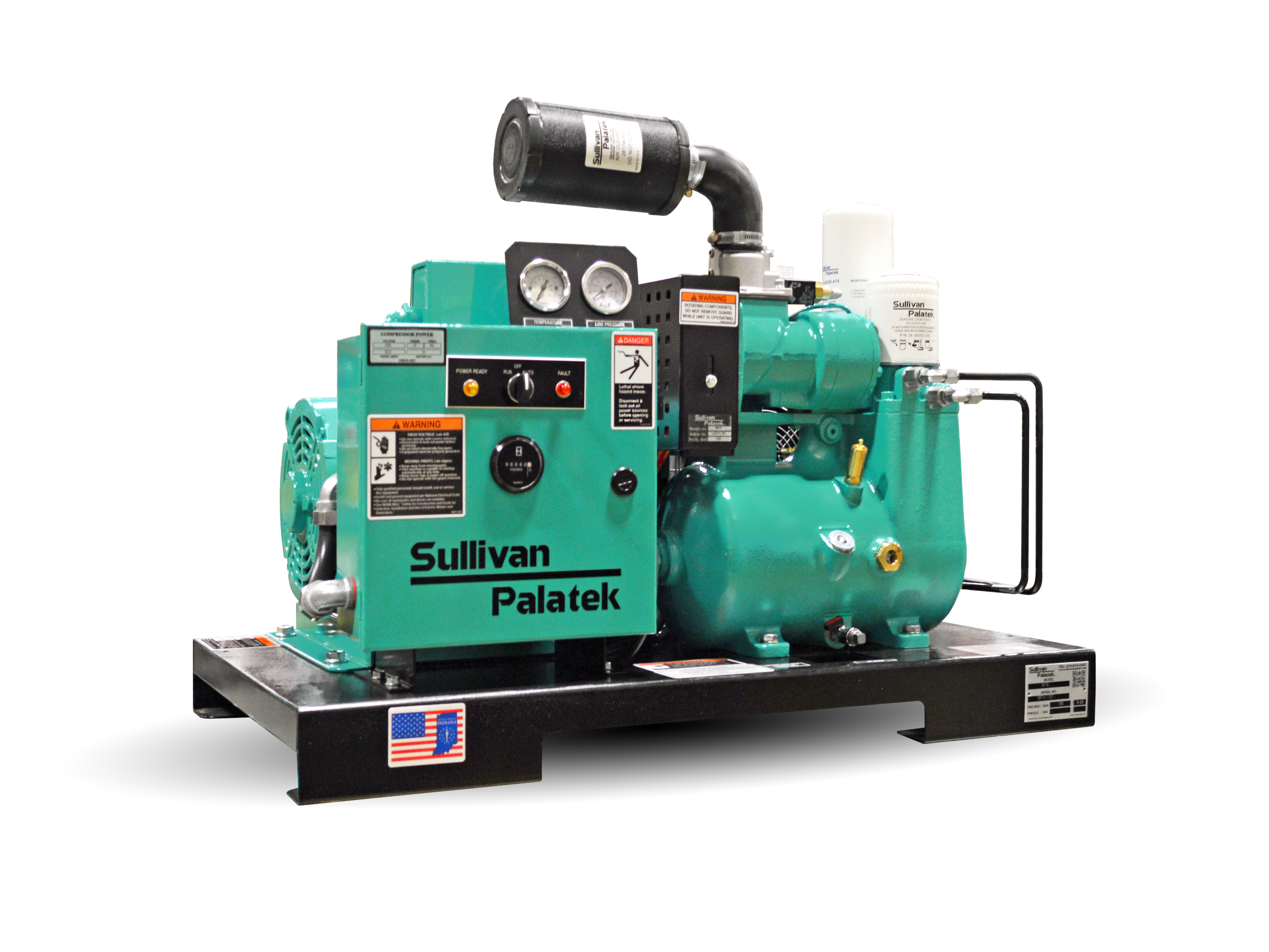

Our M-Series 10hp industrial air compressors are engineered to be a reliable, versatile, energy-efficient, continuous-duty compressed air solution developed by Sullivan-Palatek.

These compressors have full-voltage magnetic starters, automatic dual controls, and easily replaceable combination pleated and foam dry air filters. They are compact and are ideally used in smaller industrial settings such as automotive shops, small machining factories, and textile workshops.

Features & Benefits

  • Three-phase open drip motor options include 200/208/230/460 volts
    • It is single-phase capable
  • Full voltage magnetic starter with 115-volt control power
  • Instrumentation includes a line pressure gauge, oil temperature gauge, and hour meter
  • Automatic dual control
  • Spin-on type oil filter and separator elements provide ease of maintenance.
  • Tank mount, elevated platform, and acoustical enclosure options are available.
  • Separator trap:
    • Captures and automatically drains condensed water, oil, and dirt.
Model Horsepower (hp) Capacity (cfm) Pressure (psi) Motor Speed (rpm)
M-10 10 *40.7 125 3515
M-H10 10 35 150 3515
M-HH10 10 31 175 3515
  • Automotive Shops
  • Textile Workshops
  • Small Machining Factories
  • Agriculture
  • Manufacturing
  • Dry Cleaning
  • Pharmaceutical
  • Microprocessor
  • Tank mounted:
    • ASME coded 80, and 120 gallon with auto drain
  • Platform mounted:
    • 19″ high to keep your unit off the ground and for easy maintenance
  • Acoustical enclosure:
    • Easy removable panels for faster maintenance and accessibility while keeping it quiet
  • Lubricant:
    • Factory fill with Pallube 32, Pal-Extra 44, AFX 32, or Food Grade lubricant
  • TEFC motor
  • Inlet modulation control

*Capacity in accordance with CAGI / ISO 1217 (Annex C / Annex E)
