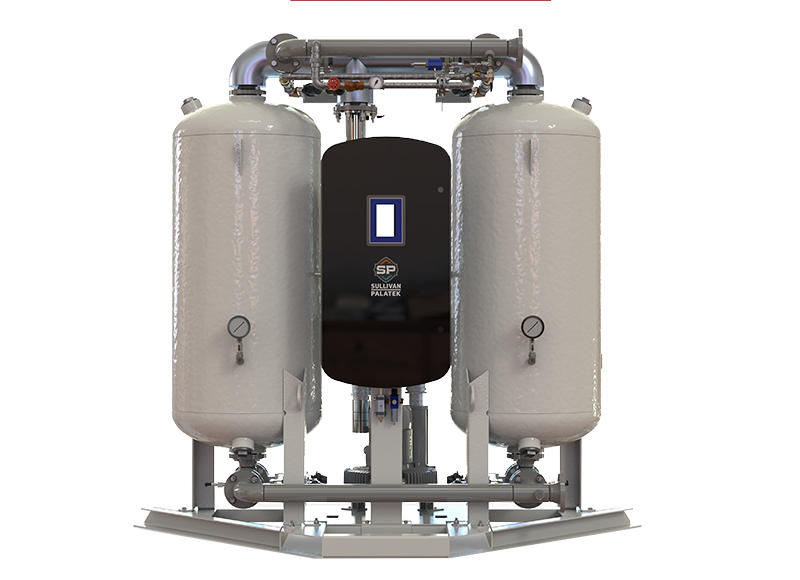

Premium Heated Blower Purge Desiccant Compressed Air Dryer
Spdprhb Series
800-6000 CFM
Sullivan-Palatek's SPDPRHB series premium heated blower purge desiccant air dryers are renowned for their versatility and ability to adapt to different environmental conditions. They excel at handling a broad spectrum of operating pressures and temperatures, making them ideal for diverse industrial applications. Moreover, these dryers can effortlessly accommodate varying air flow rates, guaranteeing consistent and dependable performance in any operational scenario.
Investing in these dryers is a smart choice for businesses looking to optimize their compressed air systems and maintain uninterrupted efficiency in their industrial processes.
Distributor pricing by quote. Equipment pricing and availability are confirmed through authorized distributors. Request pricing
Built for dependable performance
Features & Benefits
Features
-NEMA 4 Steel Enclosure -UL/cUL-508a Control Assembly -Allen Bradley MicroLogix 1100E PLC Controller -6” LCD Color Touch Screen -Outlet Dew Point Reading (using EMS Sensor) -On-Screen Display of Dryer Operation Status -Service Mode of Operation -10/100 MB/s Ethernet with Built-in Peer-to-Peer Messaging -Communication Through RS-232/RS-485 Combo Port -UL/CUL, CE, C-Tick and Class1-Div2 Certified -Data Logging - Time Based or Event Triggered -Supports DHCP -Up to 4 Add on 1762 I/O ModulesModel data
Technical Specifications
| Model | Voltage | CFM @ 100 PSI | Max Pressure | Weight (lbs) |
|---|---|---|---|---|
| SPDPRHB800 | 460/3/60 | 800 CFM | 150 PSIG | 1260 |
| SPDPRHB1000 | 460/3/60 | 1000 CFM | 150 PSIG | 1570 |
| SPDPRHB1200 | 460/3/60 | 1200 CFM | 150 PSIG | 1890 |
| SPDPRHB1500 | 460/3/60 | 1500 CFM | 150 PSIG | 2370 |
| SPDPRHB1800 | 460/3/60 | 1800 CFM | 150 PSIG | 2840 |
| SPDPRHB2300 | 460/3/60 | 2300 CFM | 150 PSIG | 3640 |
| SPDPRHB2800 | 460/3/60 | 2800 CFM | 150 PSIG | 4390 |
| SPDPRHB3300 | 460/3/60 | 3300 CFM | 150 PSIG | 5180 |
| SPDPRHB4000 | 460/3/60 | 4000 CFM | 150 PSIG | 6260 |
| SPDPRHB5000 | 460/3/60 | 5000 CFM | 150 PSIG | 7820 |
| SPDPRHB6000 | 460/3/60 | 6000 CFM | 150 PSIG | 9380 |
Applications
General industrial plant air applications
