Reciprocating Air Compressors
Performance Package Series
5–30 HP
Built with high-value features to deliver exceptional efficiency, reliability, and long-term performance, Sullivan-Palatek Performance Package air compressors provide a complete compressed-air solution for demanding commercial and industrial applications.
Available in simplex and duplex configurations, the Performance Package includes an air-cooled aftercooler, magnetic starter, low-oil control, automatic tank drain, reinforced vibration isolator pads, crankcase breather, and quiet intake filter. Dual control is included on 15–30 HP simplex models, allowing the compressor to operate in either start/stop or continuous-run mode through the use of head unloaders.
Distributor pricing by quote. Equipment pricing and availability are confirmed through authorized distributors. Request pricing
Built for dependable performance
Features & Benefits
- Air-cooled aftercooler substantially reduces discharge-air temperature and helps remove moisture created during compression
- Magnetic starter protects the compressor’s electrical system by helping prevent motor overload
- Low-oil control protects the compressor pump from damage caused by insufficient lubrication
- Automatic tank drain removes accumulated moisture to help extend receiver-tank life and improve compressed-air quality
- Reinforced vibration isolator pads minimize vibration and help extend the life of compressor components
- Newly designed crankcase breather vents crankcase pulsation while retaining oil mist
- Oversized quiet intake filter helps reduce compressor operating noise
- Dual control allows start/stop or continuous-run operation on 15–30 HP simplex models
Model data
Technical Specifications
| Model | 5 HP | 7.5 HP | 10 HP | 15 HP | 20 HP | 25 HP | 30 HP |
|---|---|---|---|---|---|---|---|
| Simplex Model Family | SPVT-735-80-FP SP735-80-FP | SPVT-745-80-FP SP745-80-FP | SPVT-755-120-FP SP755-120-FP | SP4S15120-FP | SP92012-FP | SP92520-FP | SP93024-FP |
| Simplex Pump Model | 705 | 707 | 707 | 4500 | 9000 | 9000 | 9000 |
| Simplex CFM @ 175 PSI | 17.3 | 26.2 | 34.4 | 51.0 | 76.1 | 89.6 | 101.1 |
| Simplex Tank Capacity | 80 Gallons | 80 Gallons | 120 Gallons | 120 Gallons | 120 Gallons | 200 Gallons | 240 Gallons |
| Simplex Tank Configuration | Vertical or Horizontal | Vertical or Horizontal | Vertical or Horizontal | Horizontal | Horizontal | Horizontal | Horizontal |
| Simplex Phase Availability | 1 or 3 Phase | 1 or 3 Phase | 1 or 3 Phase | 3 Phase | 3 Phase | 3 Phase | 3 Phase |
| Simplex Weight (lbs.) | 612–648 | 729–915 | 871–935 | 1,195 | 1,404 | 1,657 | 1,893 |
| Duplex Model Family | SPX-735-120-FP | SPX-745-120-FP | SPX-755-120-FP | SPX-4S1520-FP | SPX-92020-FP | SPX-92520-FP | SPX-93024-FP |
| Duplex Pump Model | 705 | 707 | 707 | 4500 | 9000 | 9000 | 9000 |
| Duplex CFM @ 175 PSI | 34.6 | 53.8 | 68.8 | 102.0 | 152.2 | 179.2 | 202.2 |
| Duplex Tank Capacity | 120 Gallons | 120 Gallons | 120 Gallons | 200 Gallons | 200 Gallons | 200 Gallons | 240 Gallons |
| Duplex Tank Configuration | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal |
| Duplex Phase Availability | 1 or 3 Phase | 3 Phase | 3 Phase | 3 Phase | 3 Phase | 3 Phase | 3 Phase |
| Duplex Weight (lbs.) | 1,203 | 1,400 | 1,428 | 2,513 | 3,221 | 3,331 | 3,521 |
Applications
Workshops:
Provides dependable compressed air for workshops with periodic or intermittent air-demand requirements.
Automotive Garages:
Suitable for automotive repair facilities and service areas that require compressed air for tools, maintenance and general shop use.
Tire Service and Inflation:
Provides compressed air for tire inflation, tire-changing equipment and related automotive service applications.
Light Manufacturing:
Supports production equipment, pneumatic tools and other intermittent compressed-air requirements.
Small-Scale Construction:
Suitable for smaller construction and maintenance operations where compressed air is required periodically.
General Commercial Use:
A dependable compressed-air solution for businesses that require reliable airflow without continuous-duty operation.
Compressor selection should be based on required airflow, operating pressure, electrical service and duty cycle.
Configurations

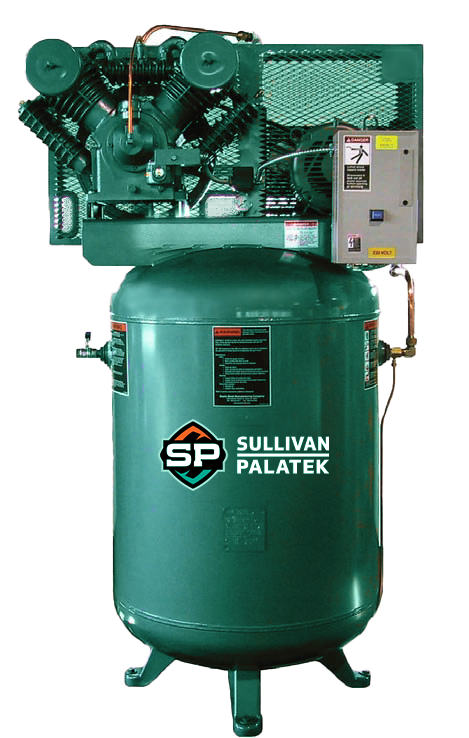

Simplex – Vertical Tank:
A single compressor assembly mounted on a vertical receiver tank. This space-saving configuration is available on selected 5, 7.5 and 10 HP models.
Simplex – Horizontal Tank:
A single compressor assembly mounted on a horizontal receiver tank. Available across the 5–30 HP Performance Package range.
Duplex – Horizontal Tank:
Two compressor assemblies mounted on a common horizontal receiver tank to provide increased airflow and compressed-air capacity.
Available horsepower, tank capacity, voltage and phase vary by model.
