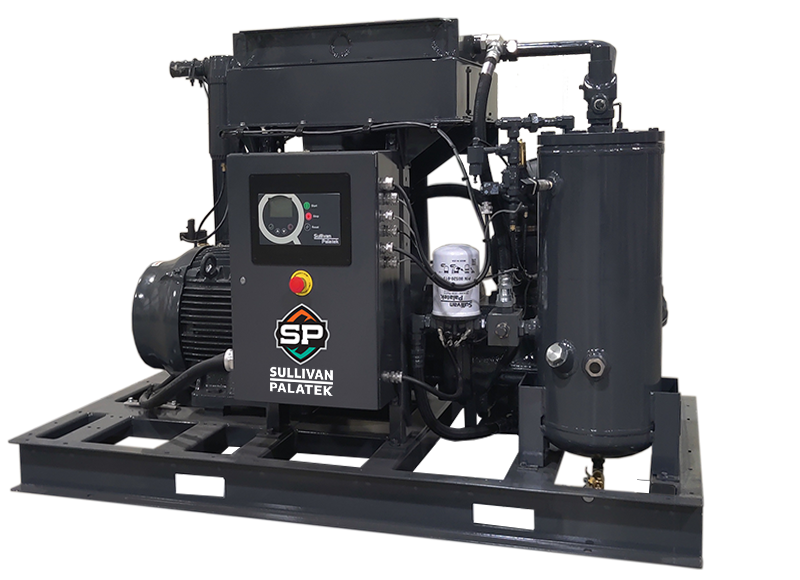

The SP13 is designed for optimized efficiency, size, and maintenance. Manufactured by Sullivan-Palatek, this industrial electric air compressor ranges from 40-60 hp.
This unit’s small footprint and versatility make it a useful product for both metal and plastic fabrication facilities, as well as the food and beverage industry. This versatile product is also remarkably quiet, with an optional sound enclosure.
Features & Benefits
- NEMA Premium Efficient, Severe Duty TEFC motor
- The motor control assembly has a NEMA 4 enclosure for safe use in industrial environments.
- Equipped with an enhanced user display, the Q1 controller is capable of web access and remote monitoring with the sequencing of up to 12 compressors.
- The new SP13-Series airend is designed for efficiency, performance, and low maintenance.
- The new high-flow, low-loss inlet valve is designed for increased efficiency and dependable performance.
- The compressor assembly is flange mounted to the motor’s C-face for positive alignment.
- Optimized Air-Oil separators have less restriction and reduce fluid carryover to less than 1 ppm with an 8,000-hour maintenance frequency.
- Filled with PAL-EXTRA 44, a fully synthetic premium lubricant formulated to prevent varnish under higher temperatures and harsh conditions with an 8,000-hour extended drain interval
- Condensate separator with timed auto-drain collects and automatically drains condensate.
- Optimized electro-pneumatic controls reduce energy consumption in an unloaded state.
- Auto-Dual control
- Cooler clean-outs for ease of cleaning
- Raised face 4-bolt flange at the compressor’s outlet to prevent stresses on plumbing and to aid in the installation
- Heavy-Duty single pass Air/Oil coolers reduce system losses for improved efficiency and performance up to 104°F
| Model | SP13-40 | SP13-50 | SP13-60 |
|---|---|---|---|
| Horsepower (hp) | 40 | 50 | 60 |
| *acfm @ 100 psig L | *194 | *233 | *266.6 |
| *acfm @ 125 psig | *170.1 | *225.5 | *265 |
| *acfm @ 150 psig H | *149.7 | *184.1 | *225.2 |
| *acfm @ 175 psig HH | *131.4 | *172.7 | *214.1 |
- Manufacturing
- Amusement Parks
- Ski Resorts
- Railroads
- Food and Beverage
- Farming
Options
- Acoustical enclosure:
- It reduces sound levels and has removable panels for easy maintenance and accessibility.
- Lubricant: PALASYN 45, PALLUBE 32, AFX 46, AFX 32, PAL-EXTRA 68, PAL-FOOD GRADE 32LL
- Wye-Delta Starter
- Electro-Mechanical/Gauge Control Assembly:
- 5 Gauge Deluxe package includes: Line pressure, discharge pressure, temperature, lubricant filter differential, and separator element differential gauges
- Cold weather/low ambient package
- Power failure auto-restart
- Phase-monitoring
- Heavy Duty Air Filtration for harsh environments
- VFD Package:
- It provides reduced energy cost, low starting current, and precise pressure and temperature control with a changing process. The Variable Frequency Drive package comes standard with a line reactor to protect the entire compressor from power surges and harmful currents while reducing power line distortion.
*Capacity in accordance with CAGI / ISO 1217 (Annex C / Annex E)
