2,000-14,412 SCFM

Filtration

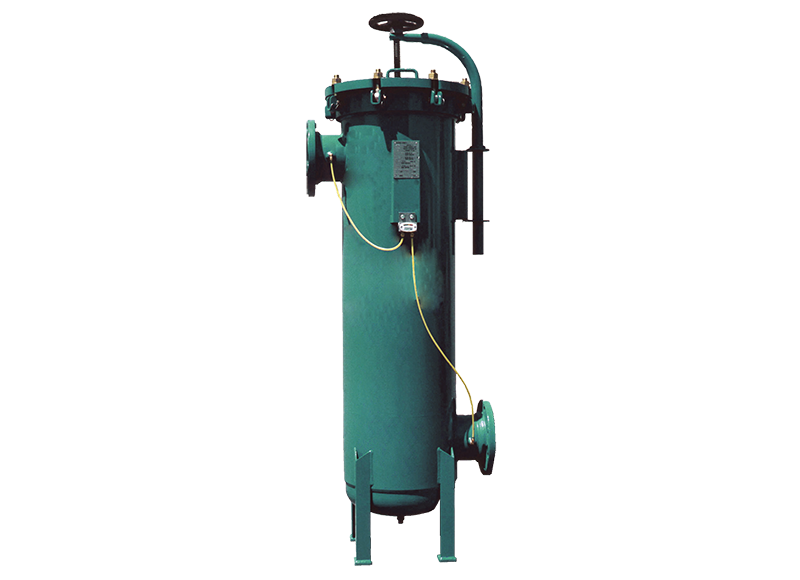

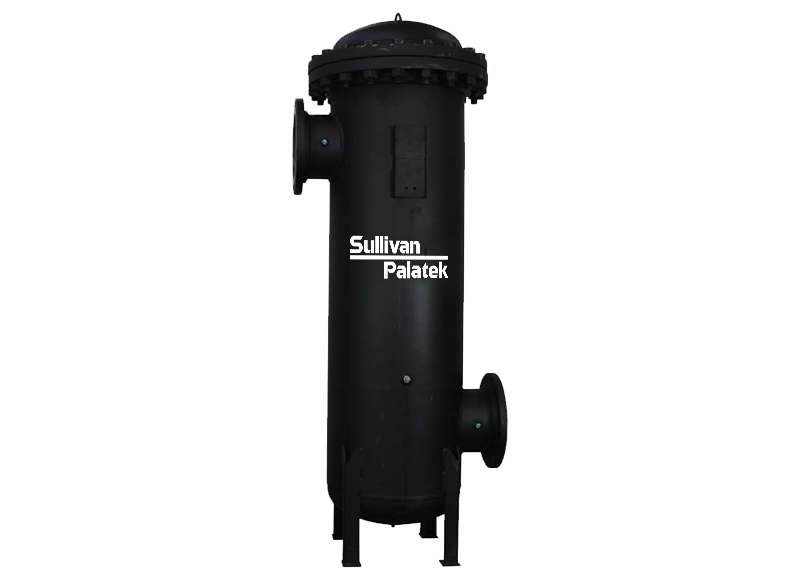

Large Capacity ASME Housings

The T-Type and Floor Mount available in this specification are designed to handle a maximum pressure of 150 PSIG at a temperature of 225°F. These units are constructed using carbon steel shells, providing durability and strength. The seals used are inorganic gaskets, ensuring a tight and reliable seal.

Furthermore, these housings meet the standards set by the American Society of Mechanical Engineers (ASME) Section VIII Division 1, ensuring safety and adherence to industry regulations. Overall, these T-Type and Floor Mount units are built to withstand high pressures and temperatures, making them suitable for various industrial applications.

Distributor pricing by quote. Equipment pricing and availability are confirmed through authorized distributors. Request pricing

Get Quote Build System

Built for dependable performance

Features & Benefits

HB = High Efficiency Coalescing with Pleated Prefilter

General filtration 0.01 micron
99.9999% Efficient
Max. oil carryover 0.008 PPM w/w
Nominal pressure drop 1.0 PSID

P = Particulate Filtration

99.99% Efficiency
Particle removal down to 1.0 micron
Nominal pressure drop 0.75 PSID

M = Mist Eliminator Coalescing Filter

General filtration 0.01 micron
99.97% efficient
Max. oil carryover 0.09 PPM w/w
Nominal pressure drop 0.5 PSID

Model data

Technical Specifications

Technical specifications — ASME Filters
	High Perf. Coalescer	Utility Coalescer	Patriculate	Mist Eliminator
Housing Rating	285 PSIG/225°F	285 PSIG/225°F	285 PSIG/225°F	285 PSIG/225°F
ISO Class	1 Solid / 1 Oil	1 Solid / 3 Oil	2 Solid	2 Solid / 4 Oil
Delta Pressure Wet	4	2.5	.25	.25
Delta Pressure Dry	1.5	0.75	0.25	0.25
Micron Rating	1.01	1	1	0.5
% Efficient @ .3/.6 µm	99.999	99.999	N/A	99.5
Max Oil PPM w/w	1.008	0.008	0.83	0.09

Downloads

ASME Filter Sales Sheet ASME Filter Image
