Industrial Electric

SP20+ Series

125-200 HP

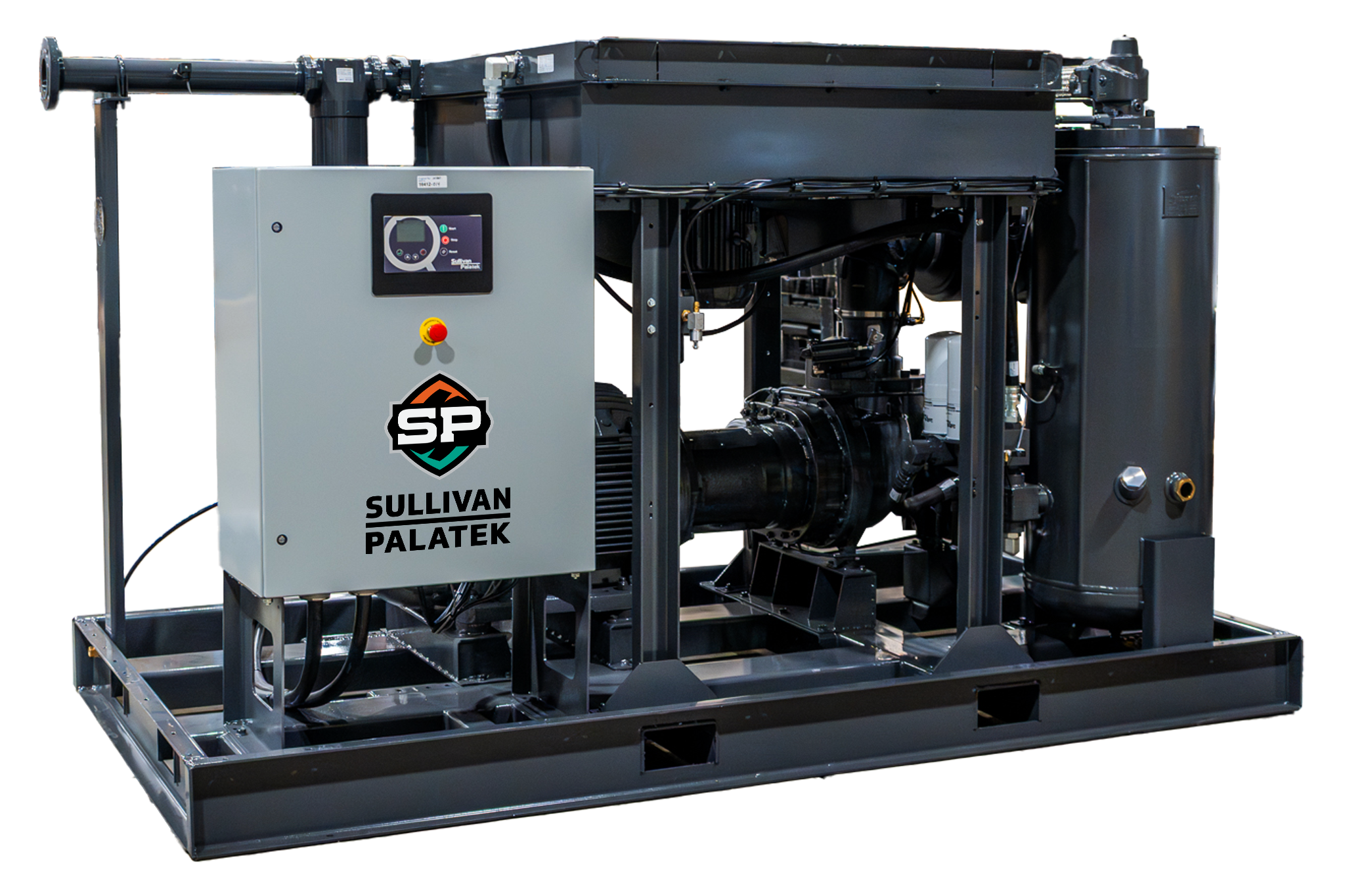

The SP20 Series has been designed to optimize efficiency without compromising on power. This industrial electric air compressor is available in a horsepower range of 125-200 HP. These units feature durable Sullivan-Palatek air ends and oversized coolers, making them suitable for challenging real-world conditions. With its reliability and robust construction, this heavy-duty machine is ideal for the aerospace industry, heavy goods manufacturing, and the food and beverage sector. Please note that the image displayed includes an optional gauge panel.

Distributor pricing by quote. Equipment pricing and availability are confirmed through authorized distributors. Request Quote

HP
125 - 200 HP
CFM
514 - 925 ACFM; see pressure table
PSI
100 - 175 psi; listed configurations
Drive Type
Electric; optional VFD (model-dependent)
Sullivan-Palatek SP20+ SERIES product

Built for dependable performance

Features & Benefits

  • Motor with Totally Enclosed Fan-Cooled (TEFC) enclosure type for indoor and outdoor use
    • Slow turning, low RPM motors = quieter compressor and longer-lasting due to motor speed
  • 460-volt Wye-Delta with 115-volt control
  • This unit includes a one-piece inlet poppet valve housing for reliable performance
  • Manufactured with a display Q1 microprocessor, the controller is capable of web access monitoring and sequencing up to 12 compressors
  • The compressor is flange mounted to motor C-face for positive alignment
  • The air intake filter includes an oversized dry type with easily replaceable elements
  • NEMA 4 electrical enclosure

Model data

Technical Specifications

Technical specifications — SP20+ Series 125-200 HP
Model SP20+125 SP20+150 SP20+200
Horsepower (hp) 125 150 200
*acfm @ 100 psig L *649 *747 -
*acfm @ 125 psig *569 *707 *925
*acfm @ 150 psig H *514 *628 *828
*acfm @ 175 psig HH - *537 *764
*Capacity in accordance with CAGI / ISO 1217 (Annex C / Annex E)

Applications

  • Aerospace Industry
  • Heavy Goods Manufacturing
  • Food and Beverage Industry
  • Electronics Assembly
  • Wood Products
  • Plastics
  • Power Generation

Options

  • Acoustical enclosure:
    • Easily removable panels for faster maintenance and accessibility while keeping it quiet
  • Lubricant:
    • Factory fill with Pallube 32, Pal-Extra 44, AFX 32, or Food Grade lubricant
  • Solid States starters
  • Air filter pop up indicator
  • Deluxe gauge panel:
    • Line pressure gauge, discharge pressure gauge, hour meter, temperature gauge, lube filter, and separator element differential gauges
  • HATD shutdown switch:
    • Shuts the compressor if high discharge air temperature is sensed
  • Cold weather/low ambient package
  • VFD
    • Variable Frequency Drive option, for more information, click here

Downloads

INDUSTRIAL ELECTRIC / 125–200 HP ROTARY SCREW

SP20+ Series: Sizing a 125, 150 or 200 HP Compressor

The SP20+ family includes 125, 150 and 200 HP industrial electric rotary screw compressors for large plant-air requirements. Compare the published SP20+125, SP20+150 and SP20+200 ratings at the actual operating pressure, then plan the supporting controls, receiver storage and air treatment for the complete system.

Compare Ratings at the Actual Pressure

The SP20+ Specifications table gives model-specific delivered-air capacities. Not every model has a published rating at every pressure: SP20+200 has no displayed 100 psig value in the source table. Compare only matching published pressure points, account for verified system losses and confirm the corresponding technical sheet before requesting a final configuration.

Plan High-Capacity Control and Redundancy

For high-demand manufacturing, consider changes across shifts, planned growth and critical production uptime. Compare a single larger package with staged compressors when redundancy or part-load efficiency matters. Evaluate available VFD options and control sequencing using measured demand and model-specific efficiency rather than assumed cost savings.

Engineer the Entire Installation

A 125–200 HP package requires coordinated consideration of power supply and starting method, room ventilation, pressure stability, discharge piping, receiver volume, condensate handling, dryers and filtration. The existing options list starter, enclosure, monitoring and high-temperature protection choices; confirm actual availability and installation requirements before ordering.

Questions to Answer Before Choosing

What is the difference between SP20+125, SP20+150 and SP20+200?

The models differ in motor horsepower and published airflow at each operating pressure. Use the original SP20+ table to compare CFM at the same required PSI. Pressure limits and available performance points vary by configuration, so do not extrapolate a missing rating.

Can a 200 HP compressor run at the same 100 psi rating as the smaller models?

The current SP20+ product table does not publish a 100 psig airflow figure for SP20+200. Ask for the exact current technical specification and application guidance instead of inferring a capacity or configuration from the 125 or 150 HP rows.

How should a facility plan a high-horsepower rotary screw replacement?

Document measured CFM demand, required point-of-use pressure, current system pressure loss, electrical service, operating schedule, cooling conditions, desired redundancy, existing receiver/dryer sizes and space for maintenance access. Compare lifecycle cost using verified operating data.
