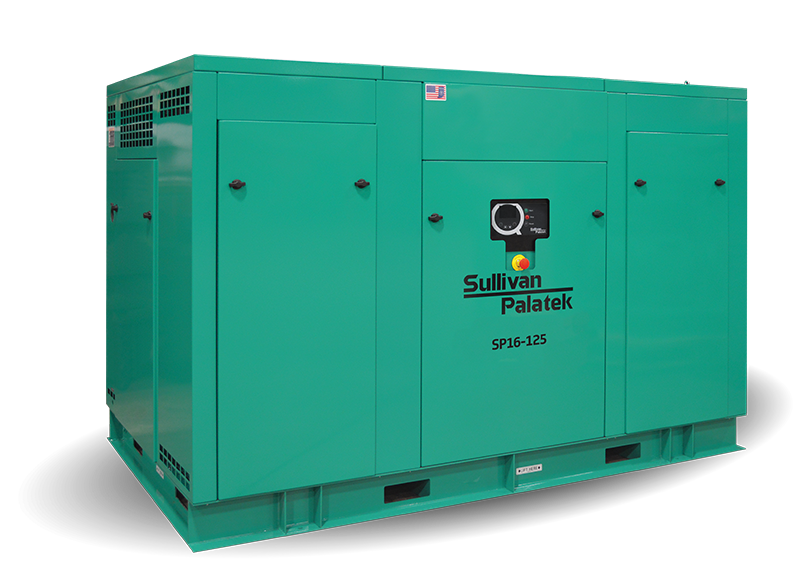

Sullivan-Palatek’s SP16 is a meticulously crafted industrial electric air compressor that prioritizes compactness, efficiency, and functionality. With a power range of 75-125 hp, this versatile product offers exceptional performance. Moreover, it boasts impressive noise control, operating quietly at 66-72 dBa when equipped with the acoustical enclosure. Its small size and adaptability make it an invaluable asset for metal and plastic fabrication facilities, as well as the food and beverage industry.
Features & Benefits
- Motor with Totally Enclosed Fan-Cooled (TEFC) enclosure type for indoor and outdoor use
- Slow turning, low RPM motors = quieter compressor and longer-lasting due to motor speed
- The motor starter has a water-tight, dust-tight, sleet resistant NEMA 4 enclosure for indoor and outdoor use
- Equipped with an enhanced display Q1 microprocessor, the controller is capable of web access monitoring and sequencing up to 12 compressors
- SP16-Series air end manufactured by Sullivan-Palatek
- One-piece inlet poppet valve housing designed for dependable performance
- The compressor is flange mounted to motor C-face for positive alignment
| Model | Horsepower (hp) | Capacity (cfm) | Pressure (psi) | Motor Speed (rpm) |
|---|---|---|---|---|
| SP16-75 | 75 | *338 | 125 | 1800 |
| SP16-100 | 100 | *440 | 125 | 1800 |
| SP16-125 | 125 | *530 | 125 | 1800 |
- Manufacturing
- Amusement Parks
- Ski Resorts
- Railroads
- Food and Beverage
- Farming
- Water cooled
- Acoustical enclosure:
- Easily removable panels for faster maintenance and accessibility while keeping it quiet
- Lubricant:
- Factory fill with Pallube 32, Pal-Extra 44, AFX 32, or Food Grade lubricant
- Wye-Delta and Solid States starters
- Air filter pop up indicator
- Deluxe gauge panel:
- Line pressure gauge, discharge pressure gauge, hour meter, temperature gauge, lube filter, and separator element differential gauges
- HATD shutdown switch:
- Shuts the compressor if high discharge air temperature is sensed
- Cold weather/low ambient package
- Separator trap:
- Captures and automatically drains condensed water, oil, and dirt
- VFD
- Variable Frequency Drive option, for more information, click here
*Capacity in accordance with CAGI / ISO 1217 (Annex C / Annex E)
