Single Stage

OEM Air Ends

The SP-Series single-stage air end has a capacity range of 100-3800 acfm. It can operate with a discharge air pressure as low as 50 psig or as high as 300 psig. The robust casting designs, along with high-capacity flanges, enable the machine to run at higher pressures and minimize inlet losses, all while reducing noise levels.

The air end is equipped with high-quality taper roller bearings and extra wide cylindrical roller bearings, ensuring a long duty cycle life even in extreme environments. Additionally, there are multiple seal options to choose from, catering to your specific application needs.

Distributor pricing by quote. Equipment pricing and availability are confirmed through authorized distributors. Request pricing

Get Quote Build System

Model data

Technical Specifications

Technical specifications — Single Stage Air End
Model	Capacity (acfm)	Max Pressure (psi)	Weight (lbs)	Dim L x W x H (in)
SP16 Short - 163 mm, 1.7 L/D, Gear Driven	200-475	250	762	35.3 x 20.3 x 16.25

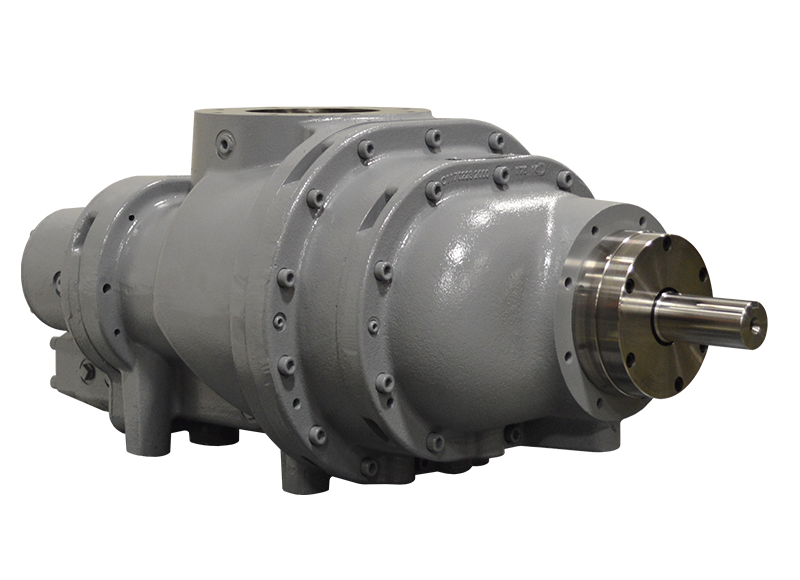

SP16 Stretch - 163 mm, 2.2 L/D, Gear Driven	250-600	250	864	38.5 x 20.3 x 16.25

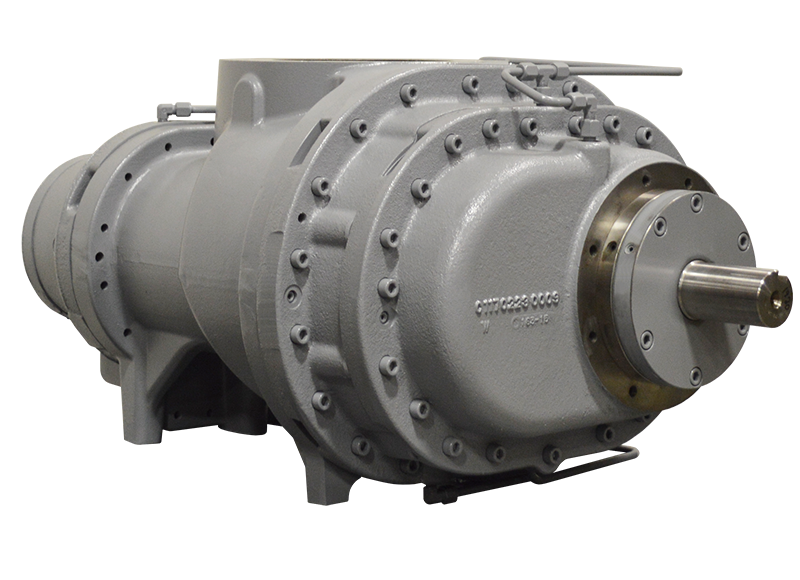

SP20 Stretch - 204 mm, 2.2 L/D, Gear Driven	525-1200	250	1100	39.9 x 23.9 x 18.8
SP32 Direct Drive - 321 mm, 1.7 L/D, Direct Drive	1500	250	2754	45.42 x 34.53 x 26.5

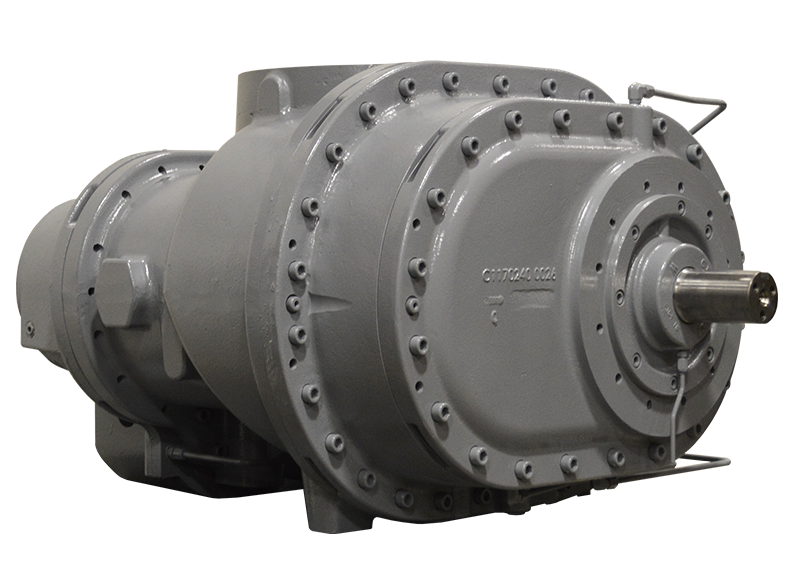

SP32 Short - 321 mm, 1.7 L/D, Gear Driven	1600-2600	250	3125	51.14 X 34.53 X 26.5

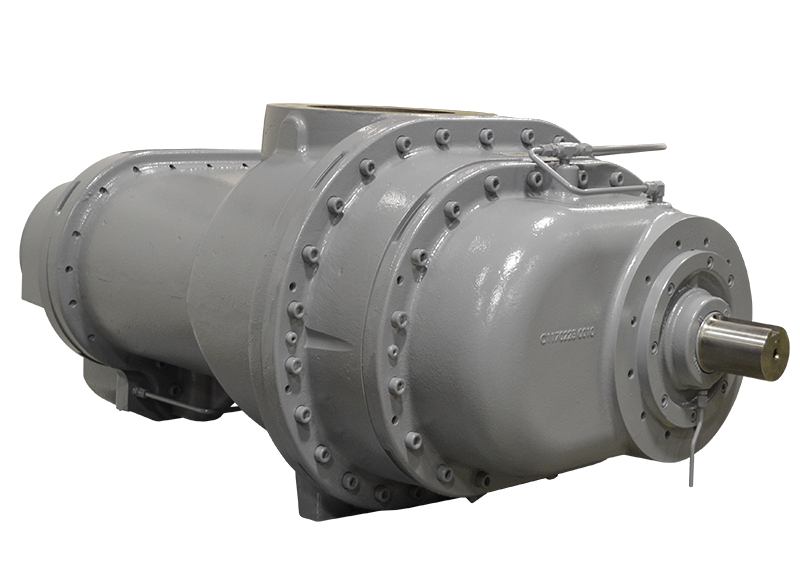

SP32 Stretch - 321 mm, 2.3 L/D, Gear Driven	2200-3600	225	3448	59.04 x 34.53 x 26.5

Applications

Compressed Air
Gas
Mining
Vapor Recovery
OEM Replacements

Options

Receiver Tank Assembly Kits
Reduced Capacity Butterfly Inlet Valve Kits
Butterfly Inlet Valve Kits
Oil Thermal Sensing Valves
Oil Stop Valves
SAE Engine Adapter Kits
C-Face Motor Adapter Kits
Oil Cooler Kits
Aftercooler Kits
Air Control Valves Kits
Mount On Oil Filter Kits
Inlet Air Filter Kits
Lubricants
Pop-it Inlet Valve Controls Kit

Downloads

OEM Air End Literature SP16 Short Image SP16 Stretch Image SP20 Stretch Image SP32 Short Image SP32 Direct Drive Image SP32 Stretch Image
