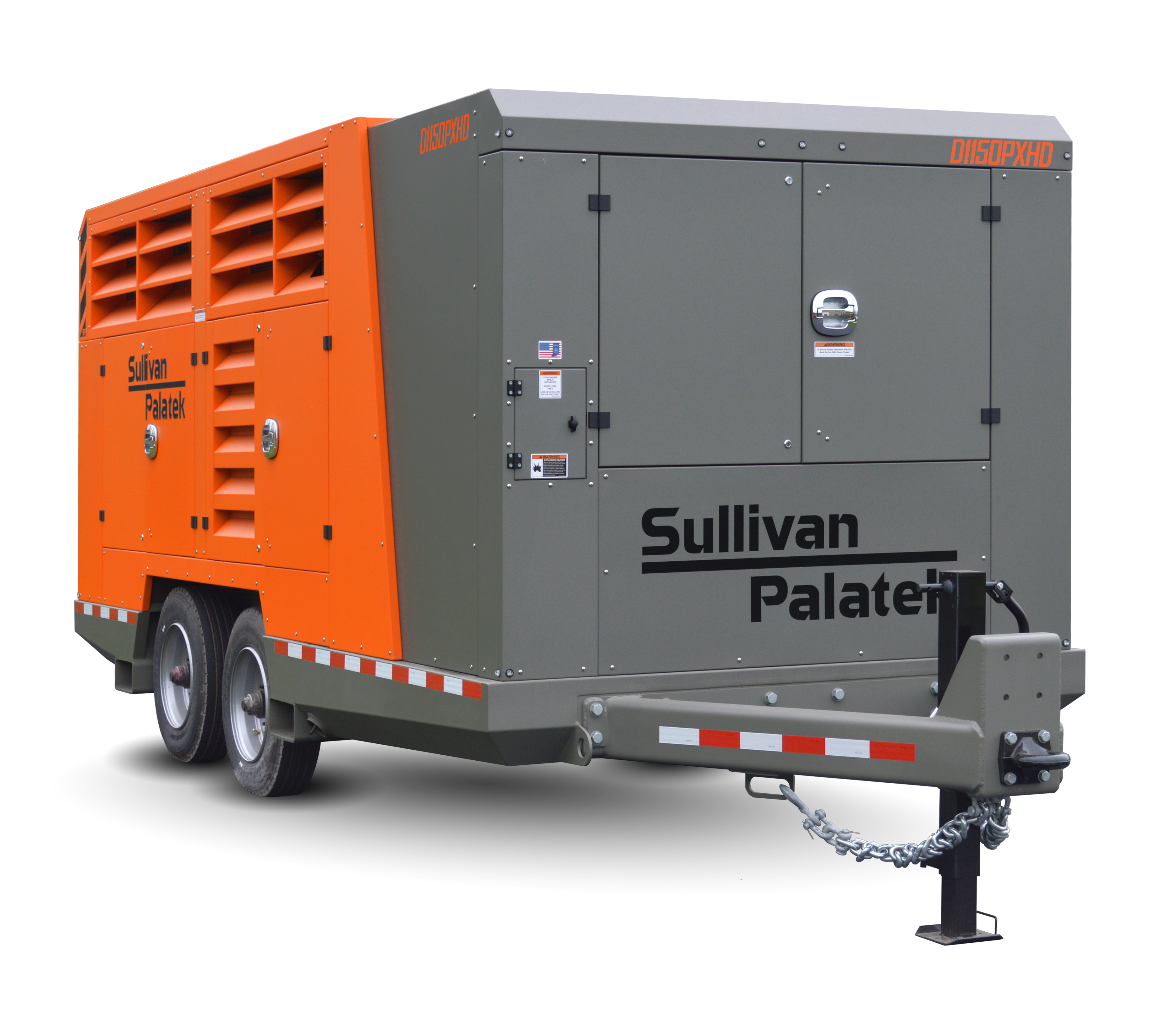

D1150 SERIES

Portable Compressor

1150 CFM

The 1150 series dual pressure/dual capacity portable air compressor delivers 900 cfm at 500 psi or 1150 cfm at 350 psi. The compressor is also equipped with the 7” display Sullivan-Palatek Electronic Controller (SPEC), that has digital readouts for everything from compressor temperature to aftercooler filter warnings. The full-service controller also features the model’s complete parts and service list for ease of maintenance. This compressor provides immense power for drilling, sandblasting, backup power for plants and refineries, and a wide variety of rental applications.

Features & Benefits

  • Offered with either a Caterpillar or Cummins engine
  • Air end manufactured by Sullivan-Palatek has a two-year warranty
  • Large service doors allow for simple maintenance access
  • Noise level limited to 76 dBA
  • Large steel fuel tank with a 224-gallon capacity
  • Equipped with dual axle running gear and electric brakes
  • Durable galvanneal sheet metal enclosure with a powder coated finish for rust and corrosion resistance
  • Telemetry
  • Solar Battery Charger
Model Horsepower (hp) Capacity (cfm) Pressure (psi) Engine Make
D115OPXHDCA4 540 900 at 500 psi or 1150 at 350 psi 500 or 350 Caterpillar T4F
D115OPXHDCU4 535 900 at 500 psi or 1150 at 350 psi 500 or 350 Cummins T4F
  • Drilling
  • Sandblasting
  • Backup power for plants and refineries
  • Rental applications
  • Aftercooler & Filter for Instrument Quality Air
  • Auto-Start to bring machine on line should the need arise
  • Oil Maintenance, Extended Capacity System
  • Remote Fuel capability, with Quick Connect / Disconnect couplers
  • Cold Weather Package, includes Engine Block Heater, etc..
  • Variable Pitch Fan for efficient operation
  • Check Valve
  • Optional Color, Powdercoat Paint (Upper Enclosure, only)
